$538.00
Key Features
Meadowlark Optics provides a small, mounted liquid crystal family of products intended for space-constrained or OEM applications. By removing the temperature control circuitry, the overall dimensions of the housing can be significantly reduced. For even tighter mechanical constraints, un-mounted cells are also available with flying leads or custom connectors.
A Liquid Crystal Variable Retarder (LCVR, also called a phase retarder or rotator) is a liquid crystal-filled waveplate device placed in the light path of an optical system to allow its electronic modulation, by phase retardation or rotation of the plane of polarization. LCVRs are filled with a solution of nematic liquid crystal (LC) molecules which rotate the plane of polarization of transmitted light. Two transparent conductive films allow an AC voltage to be applied across the optics cell. As the voltage is increased, the default orientation of the LC molecules is disrupted, changing the degree of rotation or optical phase retardation of transmitted polarized light.Retarder Material: Nematic liquid crystal
Substrate Material; Optical quality synthetic fused silica
Transmitted Wavefront Distortion: λ/2 (P – V @ 633) / λ/8 (RMS @ 633)
Surface Quality: 80 – 50 scratch-dig
Beam Deviation: 3 arc min
Reflectance (per surface): 0.5 % at normal incidence
Diameter Tolerance: ± 0.005 in.
Temperature Range: 0 ˚C to 50 ˚C
Laser Damage Threshold:
500 W/cm², CW
300 mJ/cm², 10 ns, visible
Item # | Size | Optimized Wavelength | Wavelength Range | Clear Aperture | Thickness | Lead Time | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|
LVT-100-VIS-20 | 1.000 in. (25.40 mm) | 700 | 405-700 | 0.490 in. (12.5 mm) | 0.250 in. (6.35 mm) | 1 - 2 Days | $538.00 | |
LVT-100-IR1-20 | 1.000 in. (25.40 mm) | 950 | 650-950 | 0.490 in. (12.5 mm) | 0.250 in. (6.35 mm) | 1 - 2 Days | $538.00 | |
LVT-100-IR3-20 | 1.000 in. (25.40 mm) | 1700 | 1200-1700 | 0.490 in. (12.5 mm) | 0.250 in. (6.35 mm) | 1 - 2 Days | $538.00 | |
LVT-100-IR2-20 | 1.000 in. (25.40 mm) | 1250 | 900-1250 | 0.490 in. (12.5 mm) | 0.250 in. (6.35 mm) | 1 - 2 Days | $538.00 |
SPECIFICATIONS | |
Retarder Material | Nematic liquid crystal |
Substrate Material | Optical quality synthetic fused silica |
Wavelength Range | 450 – 1800 nm (please specify) |
Retardance Range | ~ 30 nm to λ/2 |
Transmitted Wavefront Distortion | λ/2 (P – V @ 633) λ/8 (RMS @ 633) |
Surface Quality | 80 – 50 scratch-dig |
Beam Deviation | 3 arc min |
Reflectance (per surface) | 0.5 % at normal incidence |
Diameter Tolerance | ± 0.005 in. |
Temperature Range | 0 ˚C to 50 ˚C |
Laser Damage Threshold | 500 W/cm², CW |
ORDERING INFORMATION | |||

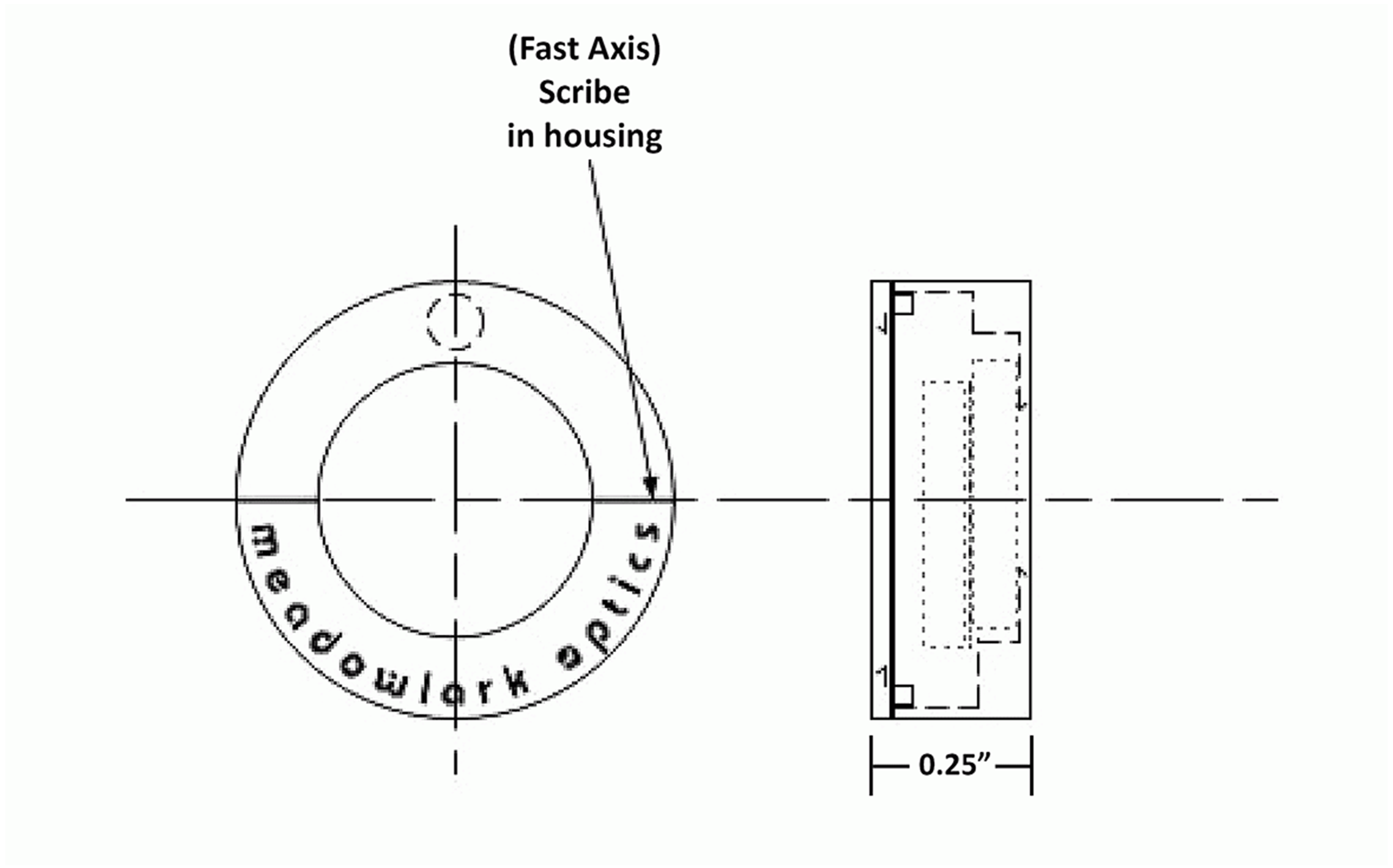

Diameter | Clear Aperture | Thickness | Part Number |
1.00 (25.4 mm) | 0.49 (12.5 mm) | 0.25 (6.35 mm) | LVT – 100 |
