Key Features
Standard, High-Speed, and 20 V versions are available!

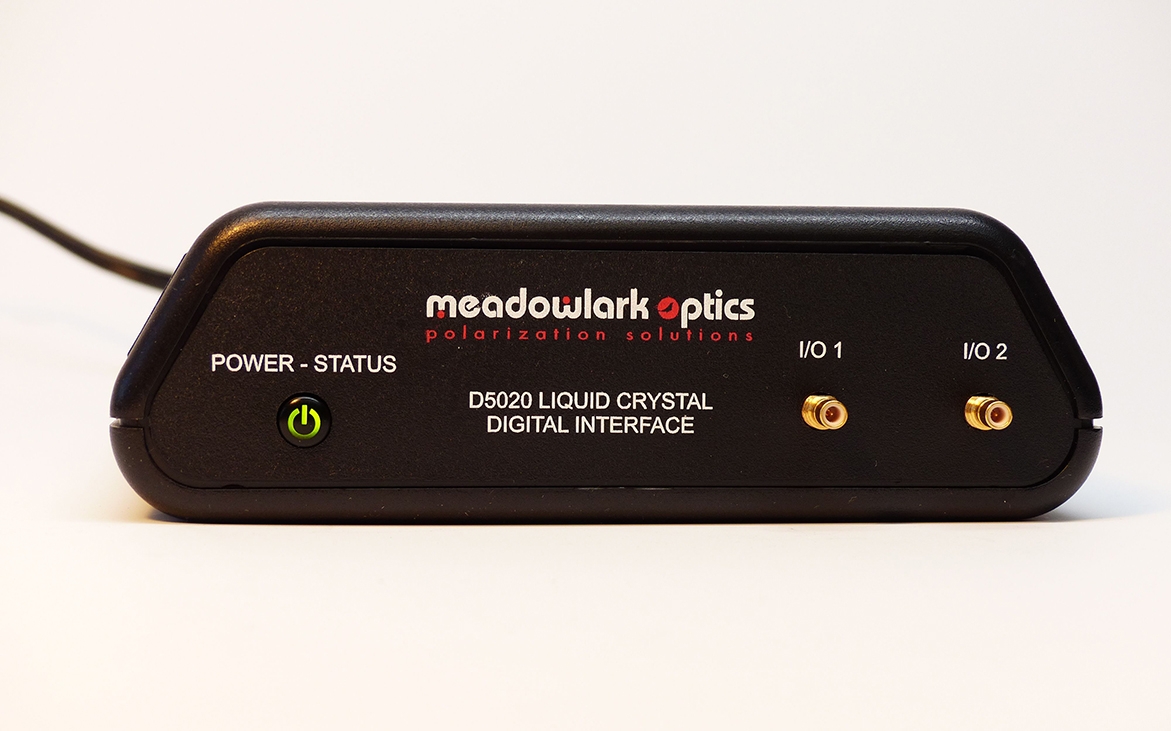

The D5020 Liquid Crystal Digital Interface is the next generation in the evolution of Meadowlark Optics Liquid Crystal Controllers. The Digital Controller is designed for user functionality and productivity. The D5020 provides a “set and go” function that allows the controller to run autonomously without a computer.
Controlling multiple Liquid Crystal cells has never been easier. CellDRIVE 5000 software provides a separate sync output for each channel as well as temperature sensing and control on both channels. The 2kHz square wave output can be amplitude modulated with sinusoidal, square, triangle, sawtooth and transient nematic effect waveforms.Digital Controller Accessories
D5020 Package:
SPECIFICATIONS | |
Fundamental Drive Waveform | 2 kHz AC square wave |
Modulation Amplitude | 0 – 10 Vrms (20 Vrms option available) |
Modulation Resolution | 1 mV (0.155 mV using LabVIEW™ subroutines) |
DC Offset | < 5 mV |
Communications Interface | USB |
LC Cell to Controller Connections | SMA – SMB, 2 m cable length |
CE Compliant | |
Dimensions (L x W x H) | 5.50 x 5.25 x 1.63 in. |
Weight | 1.8 lbs. (with cables) |
Modulation Waveforms | External modulation Input (0 – 5 V) Sinusoidal Triangle Square Sawtooth Transient nematic effect |
Temperature Control (2 Channels) | Active heating/passive cooling within ± 1 ˚C of nominal set point |
Sync Output | TTL, user specified timing and phase |
System Requirements: Windows™ Vista, 7 or 8 Requires LabVIEW™ version 2010 or higher for use with LabVIEW™ instrument Library | |
ORDERING INFORMATION | |
Item | Part Number |
LC Digital Interface | D5020 |
LC Digital Interface (20V rms) | D5020-20V |
SMA to SMB Cables | SMA-SMB |
Sync Cables (SMB to BNC) | SMB-BNC |
