Spatial Light Modulation Principles

Phase Control

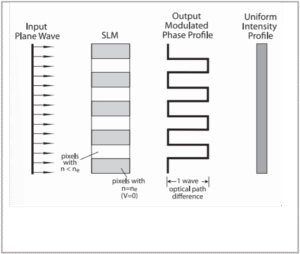

Spatial phase control is achieved without altering the intensity of the incident light beam. Light waves linearly polarized parallel to the extraordinary axis of the LC material experience phase modulation based on the voltage bias applied to each pixel. This generates an optical path difference between adjacent pixels, which is tunable up to one full wave, enabling precise light modulation.

Such modulation techniques are crucial in systems involving laser diodes, optical fiber links, and direct modulation for high-speed optical communication. The electric field applied across the LC affects its refractive index, influencing the carrier density and controlling optical output in real time.

Amplitude Control

SLMs also support amplitude phase modulation, altering the light output intensity. However, this process typically introduces unwanted spatial phase distortion. Correction is achieved using two spatial light modulators in series—the first performs amplitude modulation, while the second compensates for phase distortion, ensuring consistent optical elements behavior.

In amplitude mode, polarizers—optional and rotatable—can enhance optical modulation control. These devices are often paired with laser light systems, IR transmitters, or IR remote receivers for applications in broadband filtering, IR light signaling, and temporal light modulation.

This dual-SLM configuration is highly effective in diffractive optical applications, including acousto-optic modulation, electro-optic modulation, and systems requiring high optical output power or precise light signal shaping.

Versatility and Integration

Our SLMs support free-space optics, modulators for continuous wave (CW) sources, and advanced temporal light control. Integration with IR receivers, IR remotes, or LED lights makes them suitable for visible light, IR signal, and low-level light applications.

They’re used in research exploring neurovascular units, outer retina, and rpe cells (relevant in studies of age-related macular degeneration), where light pulses, output power, and spatial light modulation play key roles.

Whether you’re working with modulation transfer functions, electro-absorption, or epsilon-near-zero materials, Meadowlark’s SLMs provide flexible, high-performance optic modulation solutions—ideal for image processing using spatial light modulators in both academic and industrial environments.
